Functional Overview
We’re the first one Initiate Double Sets Speed-Wave Device.Use modular design and the latest processing technology, Electrical control using PLC and man-mach ine interface, Simple operation, The host frequency control, Output servo motor control, Machine structure reasonable design.
Suitable for Straight line box, Hook box, Side glue box, Box inside box, Mini box, CD box, and some other special-shaped box(irregular box )of high-speed production.
Advantage
| Technological Innovation | ||
| The First Innovation In China. We have a unique core technology | ||
| Two Sets Speed-Wave Device,Smart and easily adjust machine,can do more type irregular | ||
| One Machine Dual Use. Only one-button control electric lift to quickly switch between the Speed-Wave function and the Standard function. | ||
| High Speed ,High Precision and High Stablity | ||
| The Speed-Wave function can make doubled speed compare with Standard type, and more stable. | ||
| The Speed-Wave function can replace the air blow structure. Such as CD box, no need use air blow structure any more, and the speed is faster. | ||
| Only adjust the belt drop, finish adjusting, save time, reduce all costs. | ||
| Suitable for a variety of materials box, especially for material with window, hard-material,soft-material. | ||
| Main Parts | Brand | Advantages |
| Driving Multi-wedge Belt | France Hutchinson | High Abrasion Resisting, Steady Transmission, Low Noise. |
| Flat Belt | Germany Forbo | Seamless Connection, High Synchronization. |
| The Feeder Sponge belt | Japan NITTA | Feeding Paper Stable, High Abrasion Resisting |
| Main Drive Bearing | Japan NSK | High Precision, Steady Transmission, Long Service Life. |
| Servo Motor | All Servo Motor Controlled | Servo Control，easy to operate |
| Frame | Good Material，Increase Frame Thickness，Good Shape. | |
Specification
| Model | Leader YJS-900 | Leader YJS-1200 |
| Paper Material | Paperboard 200-800g/m², E、F flute corrugated | |
| Min size（W×L） | 76×60mm | 76×60mm |
| Max size（W×L） | 950×900mm | 1250×900mm |
| Max Speed | 400m/min | |
| Feeding Way | Automatically and continuously feeding | |
| Way Of Folding In Reverse | First crease line pre-folder up to 180 degrees. Third crease line pre-folder up to 135 degrees. | |
| Glue Type | Water base glue | |
| Power Supply | 3P 380V 50HZ | |
| Total Power | 43KW | 43KW |
| Weight | 9t | 9.5t |

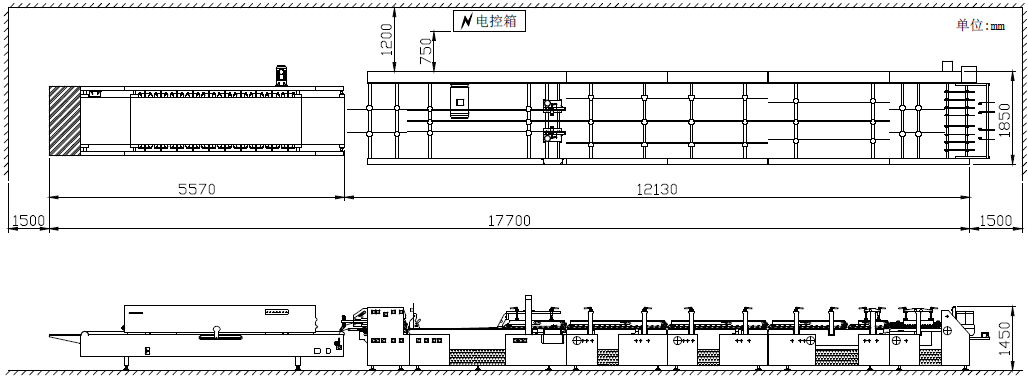

| Overall Dimension | 17.7×1.55×1.35m | 17.7×1.85×1.45m |
| Remark: Due to technical improvements, the manufacturer reserves the right to modify the above parameters and functions without prior notice. | ||
Product Structures
Paper Feeding |
Pull Gauge (Correction) |
Pre-folding |
Climbing Part |
Lower Gluing Unit |
The Folding |
Pressing |
Conveyor |
Model | YJS-900FL | YJS-1200FL |
Paper Material | Paperboard 200-800g/m² | |
Min size（W×L） | 86×60mm | 86×60mm |
Max size（W×L） | 950×900mm | 1250×900mm |
Max Speed | 400m/min | |
Feeding Way | Automatically and continuously feeding | |
Way Of Folding In Reverse | Fold 1 and fold 3 are 180° | |
Glue Type | Water base glue | |
Power Supply | 3P 380V 50HZ | |
Total Power | 43KW | 43KW |
Weight | 9t | 9.5t |
Overall Dimension | 17.7×1.55×1.35m | 17.7×1.85×1.45m |
Remark: Due to technical improvements, the manufacturer reserves the right to modify the above parameters and functions without prior notice. | ||
1. The First Innovation In China. New machine model adds a Climbing Function based on old model. Its function was strengthened again.
2. One Machine Dual Use. All we have to do is press a button, and the machine can be converted quickly and easily between Climbing type and Normal type.
3. Function Expansion. There are two kinds of the Climbing Machine Structure, one is Single Bottom-Lock Part HC Type, and the other is Double Bottom-Lock Parts HDC Type. And the latter is more versatile and more flexible.
4. The Climbing function can help double the Hook-box production speed and improve the box quality as well.
5. The Climbing function can replace the air blow structure. For example, when we produce the CD box, the air blow structure is not needed, and the production speed is faster.
6. Only need to adjust the belt, so the machine debugging speed is faster than Normal type. A lot of this time can be saved by using Climbing function thus reducing costs.
7. Suitable for a variety of materials box, the climbing type has a more broad application than Normal type, especially for window box, hard-material box and soft-material box.
